More dome size, possible higher comp:



47MM_PISTON_KIT (OLD_50_DOME) OR (NEW_70_DOME) (SHORT_ROD) (SHORT_CYLINDER) (100020)



Zero without gaskets. Common base is .020, head gaskets from .010 to .080. Aim for .040 total.



What would be my min clearance with the clay? I'll probably go with the 47mm one.



For clearance, I usually mock it up without rings, head or base gaskets and roll it over. If nothing hits, clay it up and find the tightest spot. Mill something until it almost hits. Gaskets will provide the clearance.



Not real high comp, but will bore in to your jug for 101.1cc:

51MM_PISTON_KIT (OLD_50_DOME) OR (NEW_70_DOME) (SHORT_ROD) (SHORT_CYLINDER) (100032)



High comp "legal" size:

47MM_PISTON_KIT 47.25MM_PISTON_KIT 47.50MM_PISTON_KIT 47.75MM_PISTON_KIT 48MM_PISTON_KIT (OLD_70_DOME) (SHORT_ROD) (SHORT_CYLINDER) ALL_ATC70'S ALL_TRX70'S CT70_&_C70_TO_81

Unsure of exact comp, but a bunch more than you have now

I'd bet it will work as-is, but might have a tight spot or two to massage.



Probably clear, high comp bored stock jug 101cc:

51MM_PISTON_KIT (OLD_70_DOME) (SHORT_ROD) (SHORT_CYLINDER) (100041)



Can you explain the clearancing part a little bit? Have a direct link to the CT70 piston you mentioned so I don't screw it up? I'll double check it anyways. How much compression would I wind up with? Lots of questions huh but I am catching on! Thanks Anthony.



Cool & correct! The Powroll would require decking the jug, but a CT70 type would slip right in. May need a little clearancing but will give a "legal" high compression option for $23. An oversize or two will up the cc a bit too.



54 set up I posted will give a WAY high comp 114 for $110



Center of piston pin to top of piston is 19.5mm. It's 13mm from top edge of pin bore to top edge of piston plus the 6.5mm (half the diameter of the 13mm pin bore) = 19.5mm correct?

Case bore measures 56mm I think, could be 55.5mm hard to tell .

The pic of the bottom of my stock Jaling 86cc cylinder and piston. My measurements could be a little off but their real close. I don't have a metric caliper so I have to measure my standard caliper's measurements with my metric steel rule. Thanks



Can you measure the pin to top edge of the piston?

Case bore wher the sleeve goes in?

Pic of the bottom of the jug?



.55 wall thickness, no go.

Coming up. I am having trouble with this new Kodak easy share software! Easy my A$$.



54MM HI_COMPRESSION BIG_BORE CYLINDER_KIT TRX90_114CC



Can you measure the pin to top edge of the piston?

Case bore wher the sleeve goes in?

Pic of the bottom of the jug?



.55 wall thickness, no go.



7mm thick, and 53.5mm diameter. I'm guessing 1.1mm wall thickness is a no go. Just trying to figure out my best options for getting a HC set up for this engine. What are my options cause I was told the Powroll piston is out due to pin location. Thanks



I think he means the skirt on the cylinder.



Whats a spigot? The part of the cylinder that goes into the case?

Yep.



Not HC w/e22 head.



How thick is the spigot?

Whats a spigot? The part of the cylinder that goes into the case?



Not HC w/e22 head.



How thick is the spigot?

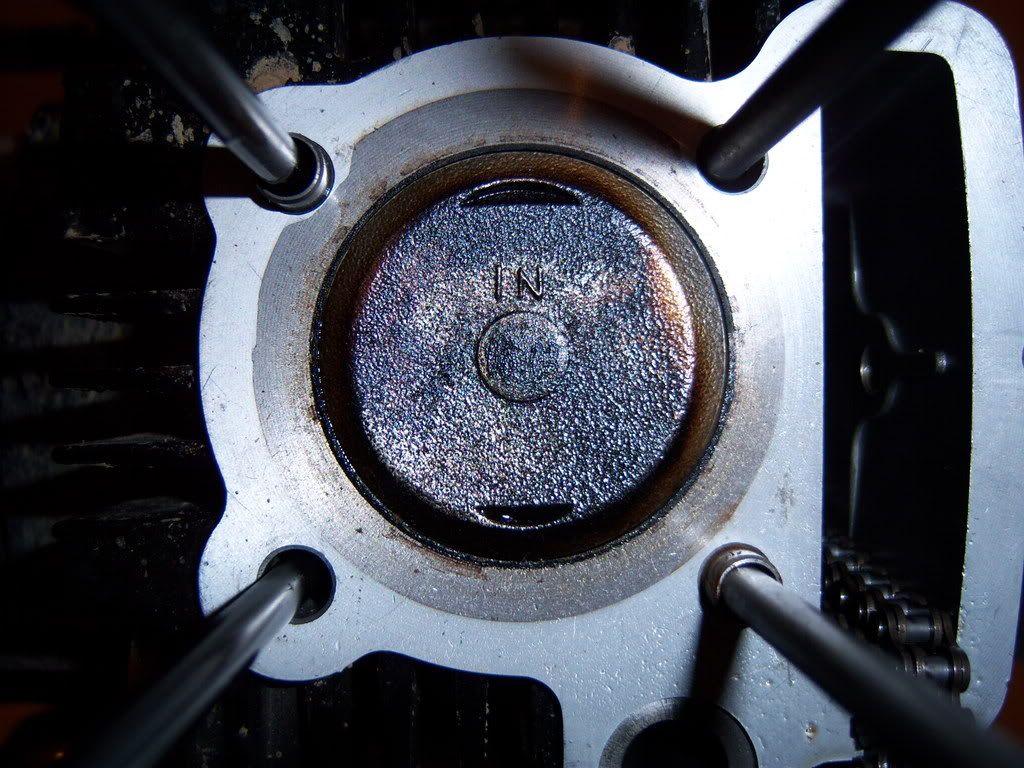

Def not high compression the dome is a perfect flat surface. if it was crowned or raised in the center then it might be high compression



nope,
