[siktendenciesracing]

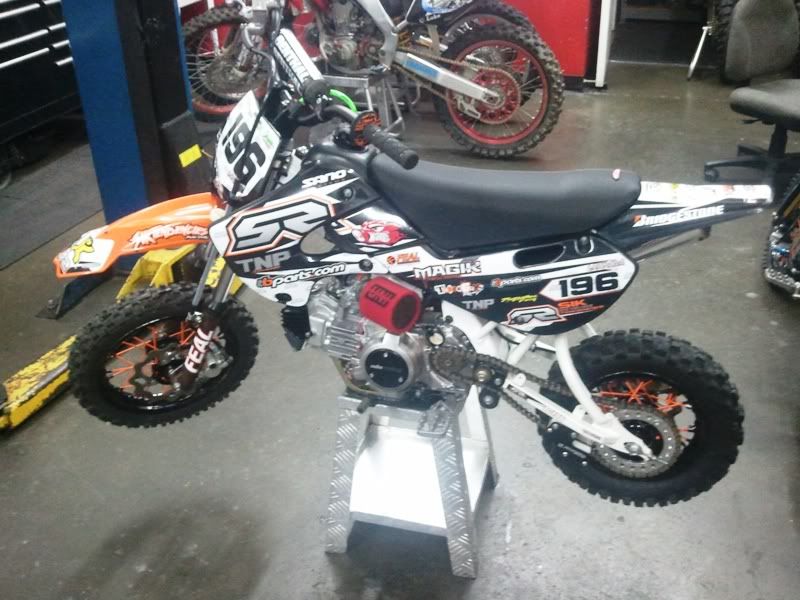

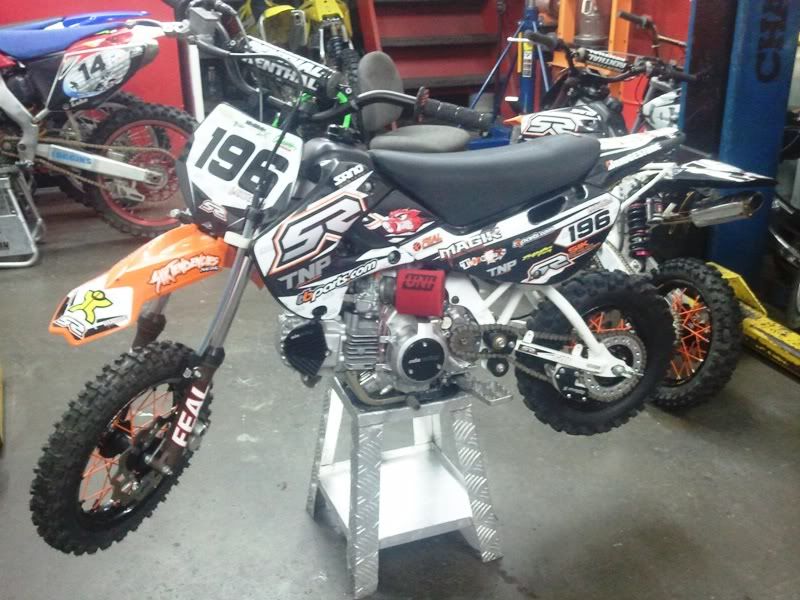

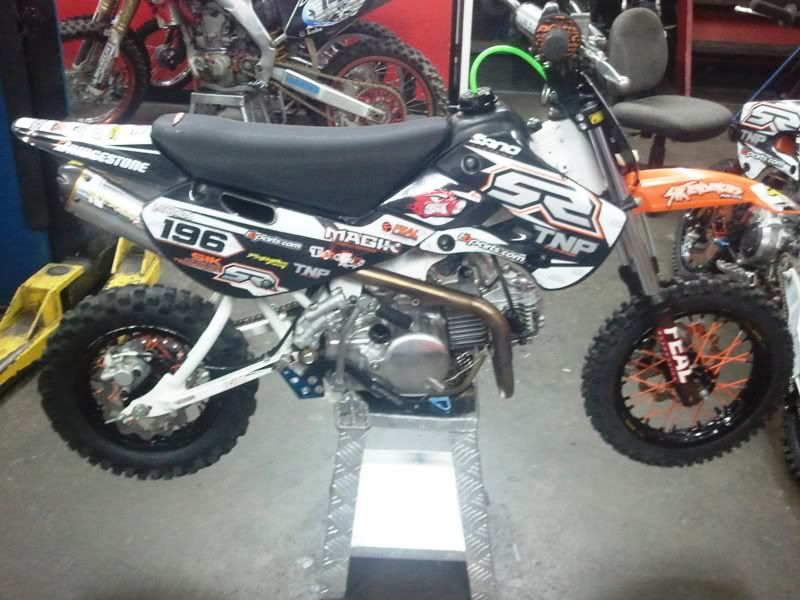

Finally finished her up today and shot some pics,,, here is all I have done to her and below are some pics:



Engine:

1. TB 55 stroker crank

2. HD output shaft

3. Classic Honda billet 2nd gear

4. TB 4th gear shift drum

5. Takegawa 138+R piston with stock cylinder bored out to a 138

6. V2 Roller rocker head with Takegawa S20 cam

7. VM26 carb with reverse manifold

8. Starter boss cut and removed from cases and rewelded back up to be able to run a rear facing manifold

9. Two Brothers Exhaust

10. Stock clutch basket with Magura hydro clutch and Takegawa primary gear


Suspension:



Front:

1. Two Brothers Dampening rods

2. Race Teck Emulators

3. Two Brothers Heavy duty Mild springs (in one leg and stock in the other)

4. Anodized fork legs Pro Circuit brown

5. Feal Suspension revalve


Rear:

1. Removed the bushings out of the swingarm and replaced them with actual bearings

2. Elka shock

3. Revalved by Feal Suspension


Misc:

1. KX65 front and rear wheels (Rad mfg Eagle black ano hubs and nipples/black excel rims/HD spokes and they are 10" rear and 12" front)

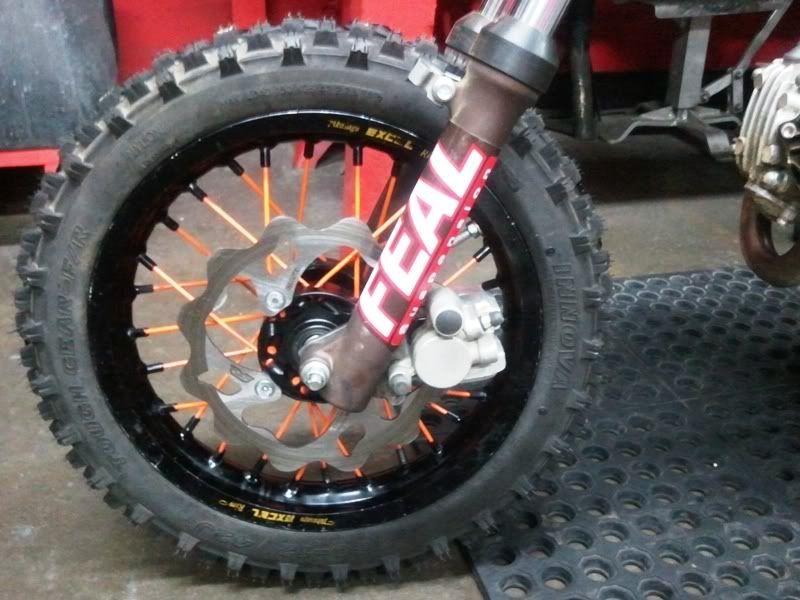

2. Galfer/STR front wave rotor for KX65 front wheel (200mm)

3. Galfer rear KX65 wave rotor

4. CR85 caliper and adapter for Stock forks with wheel spacers

5. YZ250f front mastercylinder

6. YZ250f rear master cylinder

7. KX65 rear caliper

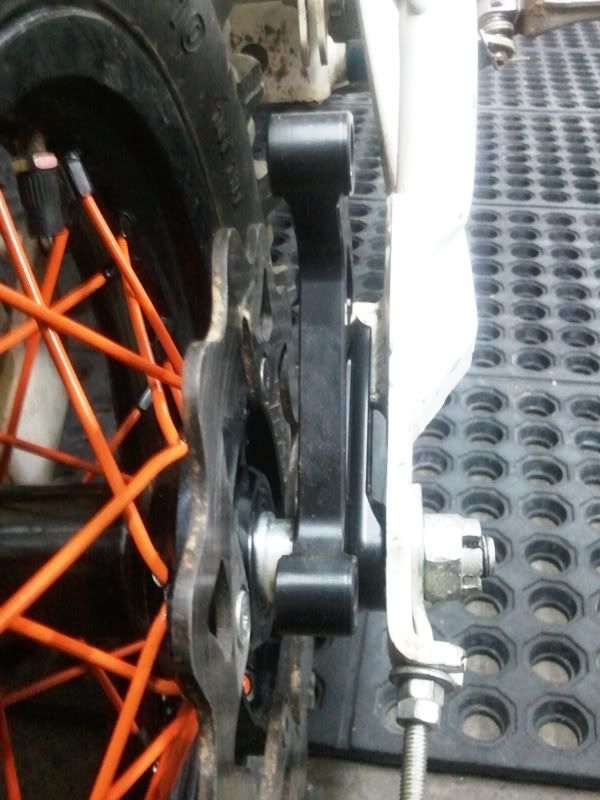

8. STR KX65 rear disc brake adapter kit for stock swingarms/a-style swingarms

9. Welded in tab to swingarm to hold rear caliper adapter

10. Renthal Allessi bars

11. Pro Taper triple clamps

12. STR Graphic kit with KTM front orange fender and black front number plate/ and UFO KLX110 black plastics back

13. Two Brothers Tall seat with N-style gripper seat

14. Two Brothers Over the top in Blue

15. Two Brothers Footpeg bar and Fastway pegs

16. Two brothers Chain Guide with Chain Roller as well

17. DID 420 GOld Chain

18. STR Billet Cam Chain Tensioner




[SiKfIdDy]

WICKED build



[siktendenciesracing]

Thanks man,,, oh and I forgot to mention that I put a baby bump in the seat also! hahahaha



[AngryDirtbikers17]

looks wicked sick..best stock/mod ive seen..



but id get those blue two bros brake parts anodized a differnt color..imo



not hating on it all tho. I LOVE IT!



[siktendenciesracing]

looks wicked sick..best stock/mod ive seen..



but id get those blue two bros brake parts anodized a differnt color..imo



not hating on it all tho. I LOVE IT!

Hahahaha,, Yeah once I get all the bikes completely done with dress up kits and all I will pull all the aluminum parts off to get stripped and anodized black, just don't have enough parts to make a batch



[siktendenciesracing]

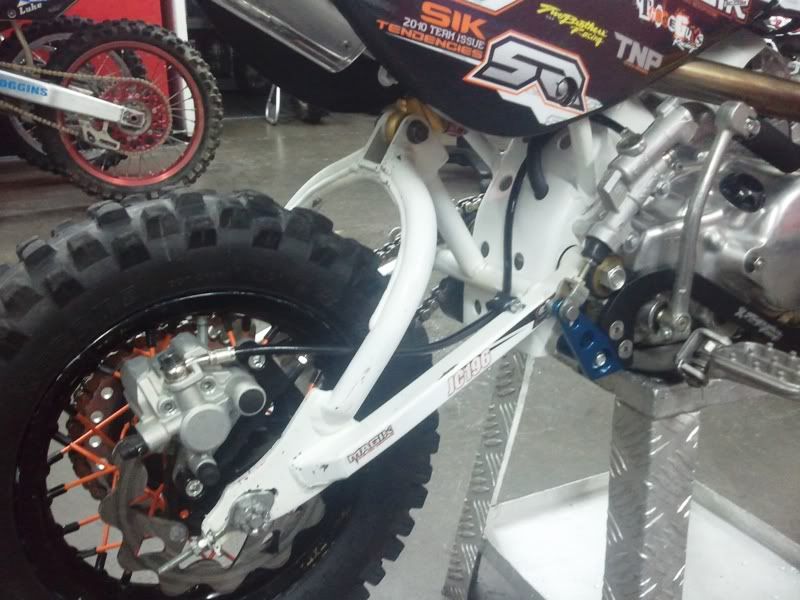

Here is another pic showing the rear brake:



[magiksc]

That thing is so clean man. Gonna bring it to havasu?



[siktendenciesracing]

That thing is so clean man. Gonna bring it to havasu?

Oh Yeah,, just don't know how the hell I am going to bring all 7 bikes out now since Shawn isn't going with us now!! hahaha



[sxrscer189]

post up a pic of how the front caliper is mounted. sick build



[siktendenciesracing]

post up a pic of how the front caliper is mounted. sick build

Like I said before I can sell you one but no free shots on how I did it!! haha A lot of time was spent figuring it out can't just give it away sorry.



[DEMONDAVE]

once again Gary has topped the build list , sik sik bike



[Matified]

Nice!! I like the brake set ups,, Sweet!



[siktendenciesracing]

Nice!! I like the brake set ups,, Sweet!

Let me tell you that those brakes are life savers on this gun slinger!! hahaha,,, the bike is so freakin fast that with the stock brakes you would def. be tempting death!! hahahaha Thing freakin rips Matt,, if you come out to Lake Havasu I will let you take it for a spin.



[siktendenciesracing]

once again Gary has topped the build list , sik sik bike

Thanks Dave,, I think this is my favorite bike I have ever built so far,, thing feels like a rapped ape on the concrete,, which makes me scared to think about putting this thing on the dirt!! hahaha



[Matified]

Let me tell you that those brakes are life savers on this gun slinger!! hahaha,,, the bike is so freakin fast that with the stock brakes you would def. be tempting death!! hahahaha Thing freakin rips Matt,, if you come out to Lake Havasu I will let you take it for a spin.

Nice!! I am planning on it, then you can try my MX110ss HO! it is only 110cc but will suprise you , i think.



[iskatealot33]

That thing is sweet haha



[phatfiddy]

Nice!!!



Shoot thats not a stock mod thats a mod 10"! lol great build!



[AngryDirtbikers17]

If you can take as many pics and videos of this bike mob'n the track!



[UndefinedT]

Dam, wish I could afford a 110





Sweet bike!



[dnez84]

How much???
