The 1981-1985 Honda ATC 70's pull starters have now been added to the discontinued list of Honda parts. This forced me to rebuild a few of them and I'd like to share a bit of information that I have found through the process.... I saw a NOS one go for $250 on ebay.

tmas

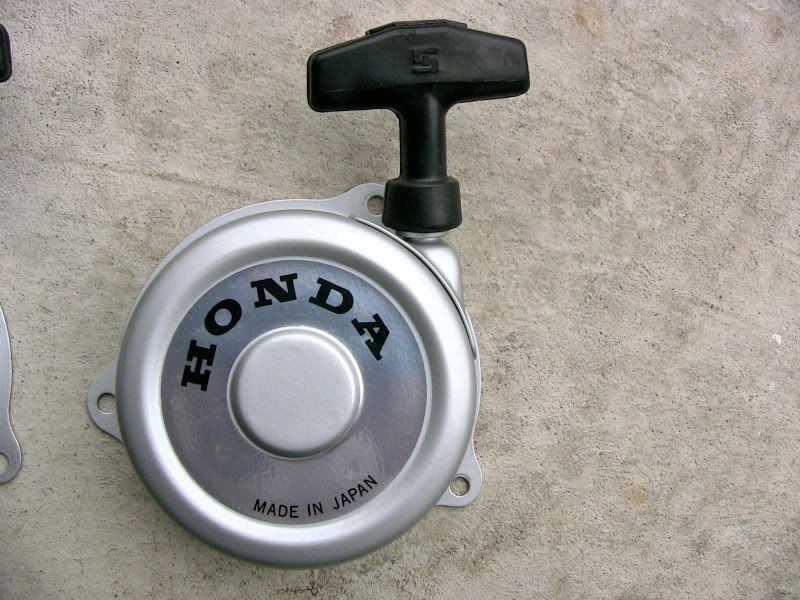

Here is the one I reconditioned.Internal parts are still available

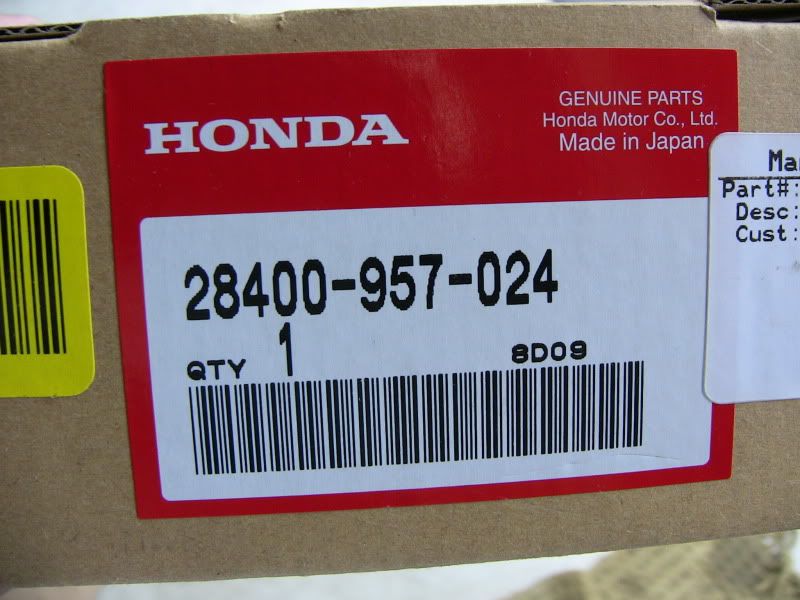

Discontinued part.

Brand new one.

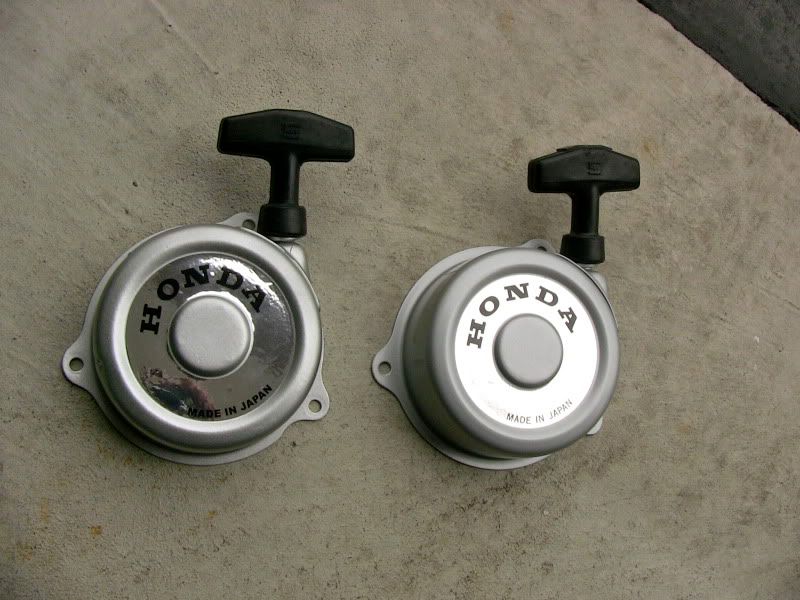

Comparison.



[tmas]

This is what I started with. More information to come..stay tuned.

tmas

Rebuilt a couple of them.

tmas



[Fikse7]

Can you still get the rubber handle?



[tmas]

I got the last one from Honda Canada...not sure about the US supply.

tmas



[tmas]

Can you still get the rubber handle?

Dratv has them for like $12.

tmas



[tmas]

The pulley is still available....$33... and is one of the culprits of the pull starter not working properly.

tmas

Pulley shots.



[tmas]

The pulley contains the spring which is not that hard to wind.

tmas



[Z]

Todd,



Please do a writeup with all the detailed pictures. Very valuable resource.



[tmas]

The pull starter dogs fit into the cage mounted on the flywheel.The pull starter has a separate mounting cover.

tmas

The dogs come out and mesh into the cage as the pull starter is pulled.

Dogs in.



[tmas]

Todd,



Please do a writeup with all the detailed pictures. Very valuable resource.

Will do Z. I have compiled a few pics.

tmas



[tmas]

Here is a pic of a new starter dog. There are 3 of them ......$8 each.

tmas

Here is a worn one beside the new one. Notice the hole in the original one....

tmas



[tmas]

Here are some pics of some pulley problems I have encountered.... do you see the cracks in the pulley and wear?The pulley is made of steel.

tmas



[tmas]

The rope ties into the pulley and the spring does not have to be removed to change the rope if your rope breaks.

tmas

The rope knot is tied into this bracket.

tmas



[tmas]

The hole in the original dog is used for this clip. The new dogs do not have the hole so the clip can't be reused.

tmas

Looks like some gang symbol...

tmas



[tmas]

Here is a pic of most of the pull starter parts.

tmas

This is what the spring winds into.

tmas



[tmas]

I matched the color with Dupilcolor paint and bought the decals from CLICK HERE

tmas



[tmas]

Original used pull starter.

tmas



[tmas]

Comparison pic.

tmas



[tmas]

Look in the above post......#13 is no longer available.

tmas



[tmas]

Anyone know if the rope knot cover ..#13 ^^^^ is used on another Honda pull starter handle application ? Another part on the discontinued ATC 70 parts list. Black electrical tape doesn't hold.
