fatcaaat · 10-05-2008, 09:42 PM

I have the yx160 GPX version and the original intake manifold. I now have the TB28 and there isn't enough clearance to make it fit in there. What have people done to make this fit in there?

magiksc · 10-05-2008, 10:00 PM

You are better off fitting a crf intake on it cause it will help the carb sit flat. This requires a wedged intake spacer.

mvkd4 · 10-05-2008, 10:32 PM

I have this same setup. I changed the angle of the flange where it bolts to the head. I sanded it on a belt sander until I got the angle right. Just do it a little at a time until it fits and make sure it stays flat so no air leaks. If it doesnt work for you, buy new parts and do it right like magic said.

boonacka · 10-06-2008, 02:27 PM

Quote:

Originally Posted by mvkd4

I have this same setup. I changed the angle of the flange where it bolts to the head. I sanded it on a belt sander until I got the angle right. Just do it a little at a time until it fits and make sure it stays flat so no air leaks. If it doesnt work for you, buy new parts and do it right like magic said.

doing that would require you to redrill the holes right?

jarred, did you get the tb28 carb kit that specifically for the yx head?

fatcaaat · 10-06-2008, 02:33 PM

Quote:

Originally Posted by boonacka

doing that would require you to redrill the holes right?

jarred, did you get the tb28 carb kit that specifically for the yx head?

I just got the carb...no kit. I need a 10mm spacer or so. Got it ordered and i'll be running by th eend of the week.

TheCRKid · 10-06-2008, 02:33 PM

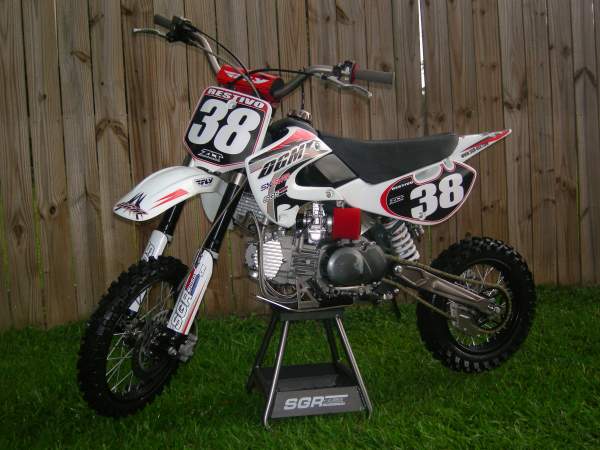

here one with a tm28 on it

Dan_Lorenze · 10-07-2008, 10:45 AM

I don't have a tb28 on my yx160 but I've had success by cutting down the cooling fins to fit my oko 26.

twitchy · 10-08-2008, 07:23 AM

We used this:

TBolt USA, LLC » Pitbike Engine Parts » CARB KITS » TB Intake Gasket and Heatstop Kit

10-05-2008, 09:42 PM	#1 (permalink)
fatcaaat 3rd Gear Member Join Date: Sep 2004 Location: Arlington, VA Posts: 2,969	mounting a tb28 carb on yx160 I have the yx160 GPX version and the original intake manifold. I now have the TB28 and there isn't enough clearance to make it fit in there. What have people done to make this fit in there?

10-05-2008, 10:00 PM	#2 (permalink)
magiksc Join Date: Oct 2006 Location: Somewhere between Heaven and Hell Posts: 2,445	Re: mounting a tb28 carb on yx160 You are better off fitting a crf intake on it cause it will help the carb sit flat. This requires a wedged intake spacer.

10-05-2008, 10:32 PM	#3 (permalink)
mvkd4 PM Newbie Join Date: Feb 2008 Location: Sandy, Utah Posts: 80	Re: mounting a tb28 carb on yx160 I have this same setup. I changed the angle of the flange where it bolts to the head. I sanded it on a belt sander until I got the angle right. Just do it a little at a time until it fits and make sure it stays flat so no air leaks. If it doesnt work for you, buy new parts and do it right like magic said.

10-06-2008, 02:33 PM	#6 (permalink)
TheCRKid Advertiser Join Date: Jan 2005 Posts: 3,773	Re: mounting a tb28 carb on yx160 here one with a tm28 on it __________________ T Bolt USA ALL top Pitbikes ,Engines and Parts for Pitbikes & Minis Website Contact THECRKID@TBOLTUSA.COM or Call 215-630-3554

10-07-2008, 10:45 AM	#7 (permalink)
Dan_Lorenze 2nd Gear Member Join Date: Mar 2006 Location: Moorpark CA Posts: 337	Re: mounting a tb28 carb on yx160 I don't have a tb28 on my yx160 but I've had success by cutting down the cooling fins to fit my oko 26.

10-08-2008, 07:23 AM	#8 (permalink)
twitchy 3rd Gear Member Join Date: Sep 2006 Location: Palm Desert, Ca. Posts: 1,145	Re: mounting a tb28 carb on yx160 We used this: TBolt USA, LLC » Pitbike Engine Parts » CARB KITS » TB Intake Gasket and Heatstop Kit
