FastMC · 09-22-2008, 10:22 PM

MonkeyTom...You are crazy !!!

I love that picture.

big pete · 09-23-2008, 01:03 AM

Here's mine

Should be tearing it down soon to clean up the wiring and a adding a few more things

Monkeytom · 09-23-2008, 05:23 PM

Thanks FastMC your Dax is Cool, here is my taged Z50 its an Oz 1981 made to look like a 1997 30 year aniv, Has a Lifan 125, a faddy pipe and 20mm Kehin carb a Kitaco manifold and Kitaco speedo and Kings tyres Its great fun..Mtom

Adam z50+R · 09-30-2008, 03:26 PM

WOW!

great to see so many Z's
just registered from the u.k

heres my Motorcross Z50r / 124 +R

the spec.

Modified crf50 frame lengthened/strengthened ~
powdercoated red
BBR sp5 forks modified
fast 50s swingarm
klx110 shock
S&M bars
Classic Honda glide plate
Classic Honda pegs
IMS gearshifter
Original Z50r wheels hubs modified
Original Z50r throttle
Posh Racing fast flow Z50 fuel tap

hope m4 brakes soon to be fitted & now also has kitaco rear mudguard fitted (looks mint)

Engine : crf50 gearbox with new Honda casings

Takegawa 124cc Twinspark +R
3 bearing support crank & mag cover
Takegawa Secondary Clutch kit
kitaco inner rotor kit
vm26 carb kit & unifilter
close ratio 3 speed conversion
daytona 7 row oil cooler front mounted
G-craft oil breather catch tank
Takegawa dig-cross race pipe

quick enough

for a Z

the pics a little old i used it On-road also then but you get the idea i will load new pics when my cameras sorted, lots of parts are now polished/raw alu

arlindsay1992 · 09-30-2008, 04:16 PM

Darn, I wish you had a bigger picture.

Adam z50+R · 09-30-2008, 04:29 PM

Quote:

Originally Posted by arlindsay1992

Darn, I wish you had a bigger picture.

sorted it

pictures much larger

arlindsay1992 · 09-30-2008, 04:41 PM

Sweet! What did you have to do to the front hub to get it to fit in the SP-5 forks? Got any close ups of that?

Adam z50+R · 09-30-2008, 04:50 PM

Quote:

Originally Posted by arlindsay1992

Sweet! What did you have to do to the front hub to get it to fit in the SP-5 forks? Got any close ups of that?

i had to remove equal amounts of metal from either side the hub as well as reduce the size of the brake lug on the fork legs to match the z50 brake plate, then used the crf50 brake cable arm

i dont currently have a camera rigged up but will soon post updated current pics

muxster · 10-01-2008, 02:22 PM

Those bikes are SIC!!

theroc1961 · 10-02-2008, 06:28 PM

My 1986 Z50R. Not much to say, pretty much all original stock.

Lair · 10-02-2008, 07:07 PM

Just finished this one today - installed the last few missing pieces:

mexicanyella · 10-02-2008, 07:34 PM

Dude, that's my bike, or at least my bike about 37 years ago...looks great!

Thanks a pantload for reminding me how far from mint mine is...

Dutch · 10-07-2008, 11:42 AM

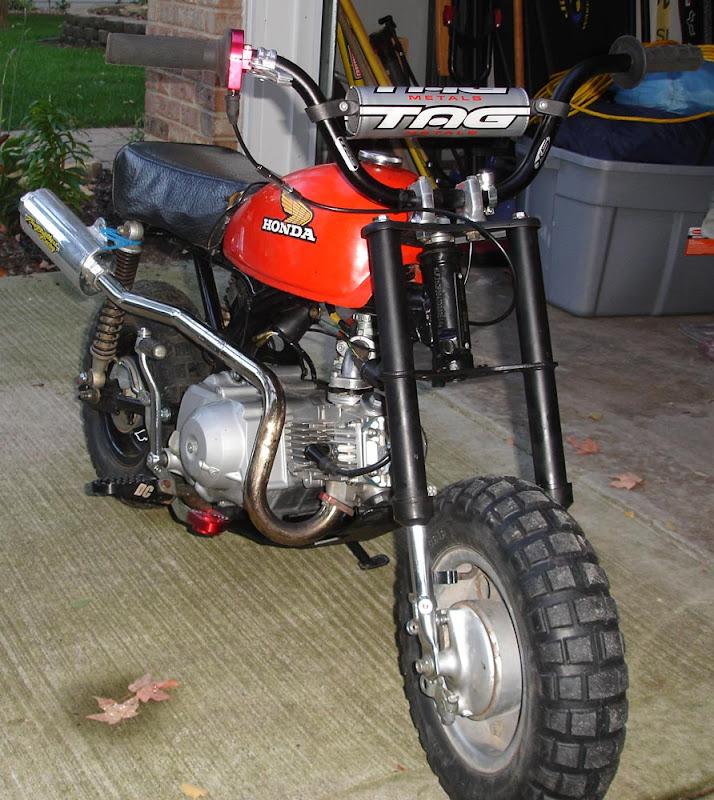

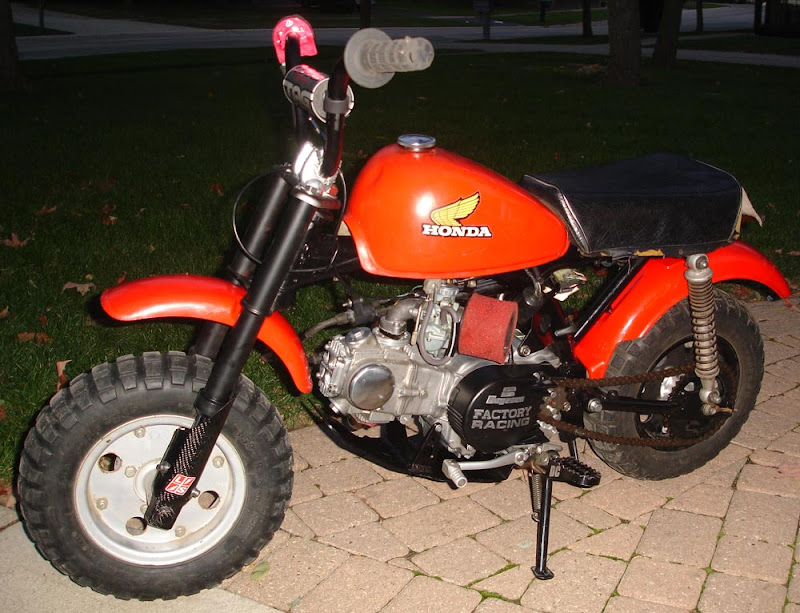

I put together a ratty z50 this weekend with left over parts I still had after parting out my built up CRF50/88 last week. I needed to have at least one beater bike. The motor I got a while back from FastMC and it has a 88 TB kit and 70 head along with a lighting coil. The frame is actually a Lifan frame, but I have it titled and plated. I just need to add lights, turn signals, a horn, etc.
The exhaust is off my CRF50 that I parted out. I'll need to find a Z exhaust for it along with an eventual build up with decent parts.

Lair · 10-07-2008, 01:34 PM

Quote:

Originally Posted by mexicanyella

Dude, that's my bike, or at least my bike about 37 years ago...looks great!

Thanks a pantload for reminding me how far from mint mine is...

This one isn't perfect, but it's not bad. It's also finished. You can re-live those memories without breaking a sweat.

1971 Z50A K2 - Mexico Yellow

arlindsay1992 · 10-07-2008, 02:17 PM

Quote:

Originally Posted by Dutch

Zip-Ties can solve any problem.

Lair · 10-07-2008, 02:32 PM

Zip-ties and safety wire have saved my bacon countless times.

Js789 · 10-07-2008, 03:05 PM

cant forget JB weld and duct tape

Dutch · 10-07-2008, 03:08 PM

Quote:

Originally Posted by Lair

Zip-ties and safety wire have saved my bacon countless times.

Yep. I didn't want to cut my crf pipe just yet. I picked up a titanium pipe a while back that was damaged, so now I need to spend some time mocking it up, cutting and welding the ti pipe to fit this bike.

I wanted to run the motor, and it was the only exhaust that I had that would kind of work.

ashz50r · 10-15-2008, 11:51 PM

my 1980 z50r when i picked it in april this year for £160:

ashz50r · 10-15-2008, 11:55 PM

As it stands today:
